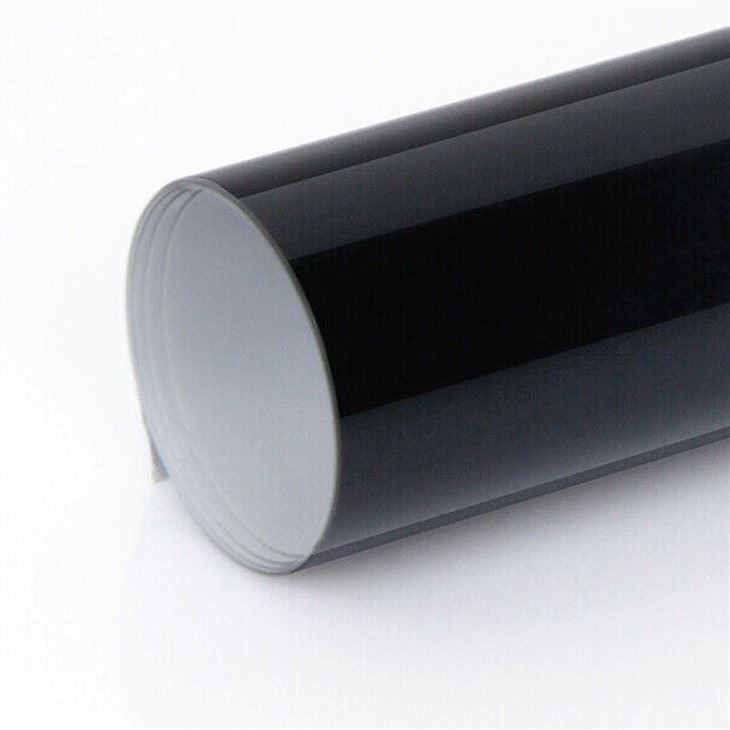

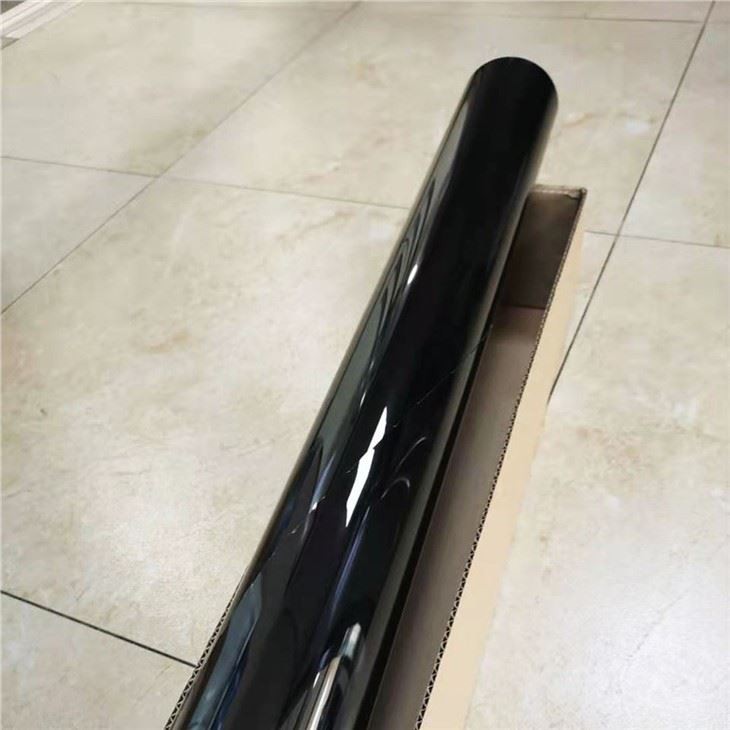

Black PPF(TPH)
Dingxin Paint Protection Film (PPF) is a premium soft PVC (TPH)
with a clear, stable pressure sensitive adhesive system, designed to provide the best overall properties to protect the paint or other smooth surface from stone, stain, abrasion or impact. Black finish matching most factory matte paints that can transform glossy vehicle paint to clear black.
For our PPF(TPH), we can also make the top coating with Glossy and matte type, with high self-healing ability and good cost performance. Our products are already entered in European market, North American market and so on. If anything interests, please kindly contact with us.

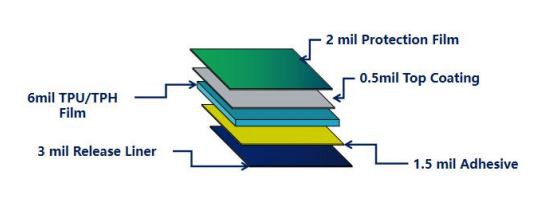

※ Products Structure
※ Products Size and Warranty
Type | Thickness | Size | Warranty |
Glossy Top Coat TPH PPF | 8 mil/6 mil | 1.52m*15m | 5 Years |
| 1.22m×30m | |||
0.92m×30m | |||
0.75m×30m | |||
0.61m×30m | |||
1.83m*15m |
※ Product Standard
Test Item | Standard | Test Method |
| TPH | ||
Modulus of Elasticity | ≤500Kgf/cm² | Tension tester |
Initial Stripping Force | ≥5N | Stick the steel plate for 20 minutes, with Tension tester |
Sustained Adhesion | 8N~20N | Stick the steel plate for 168 hours, with Tension tester |
Coating Elongation | ≥100% | Electronic tension tester |
Self-healing Ability | ≤5S | Brass brush, 750g, 10 times wipe, 60℃ condition |
Coating Adhesion | 5B | Grid testing |
Scrath Resistance | No scratch | Brass brush, 750g, 10 times wipe |
Resistance to Gasoline, Acid and Base | No abnormalities | Soak in alkaline water(PH=9) for 30min |
Weather resistance test | ΔE＜2 | QUV Tests：≥1200H(TPH) |
Cold and Warm resistance | No Cracks No Bubbles | High and low temperature box: -40℃ and 80℃ alternating test for 168H |

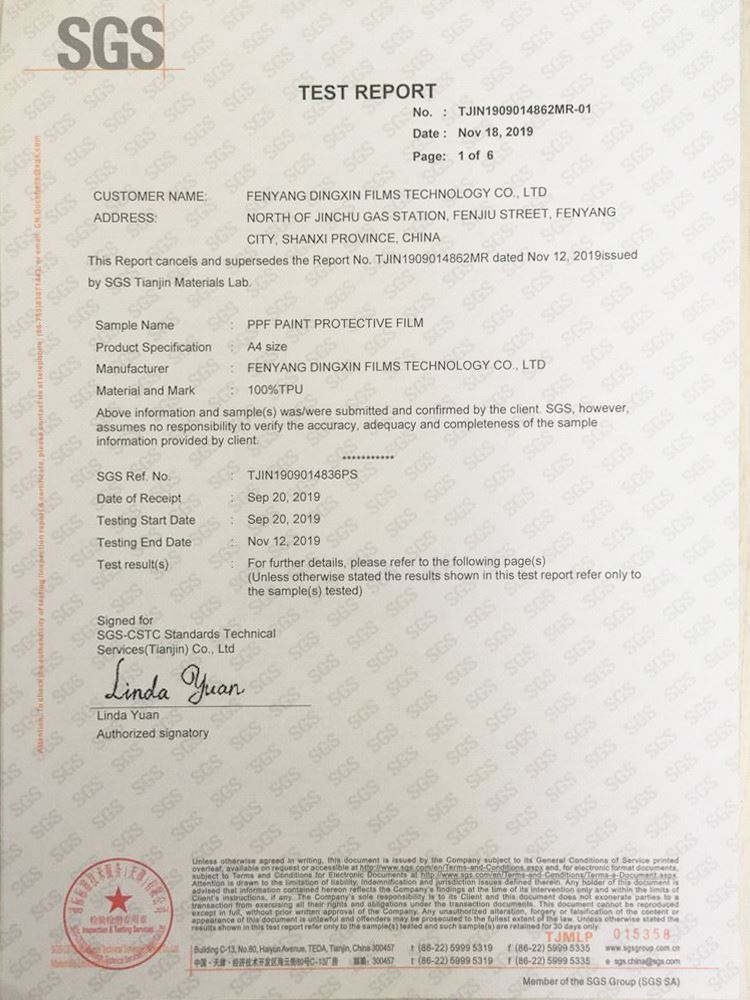

※SGS testing report
※Products Performance

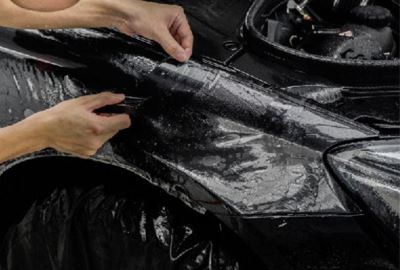

Our paint protection film protects vehicle exteriors from scratches and minor damage. It has the unique characteristic of restoring itself from slight scratches and accidental marks. Healing properties activate at room temperature, or from sunlight. A virtually invisible protective layer seals the paint color in and prevents staining. This coverage adds value, preserving the vehicle’s original, shiny new look.
