Matte PPF(TPH)
Dingxin Paint Protection Film (PPF) is a premium soft PVC (TPH)

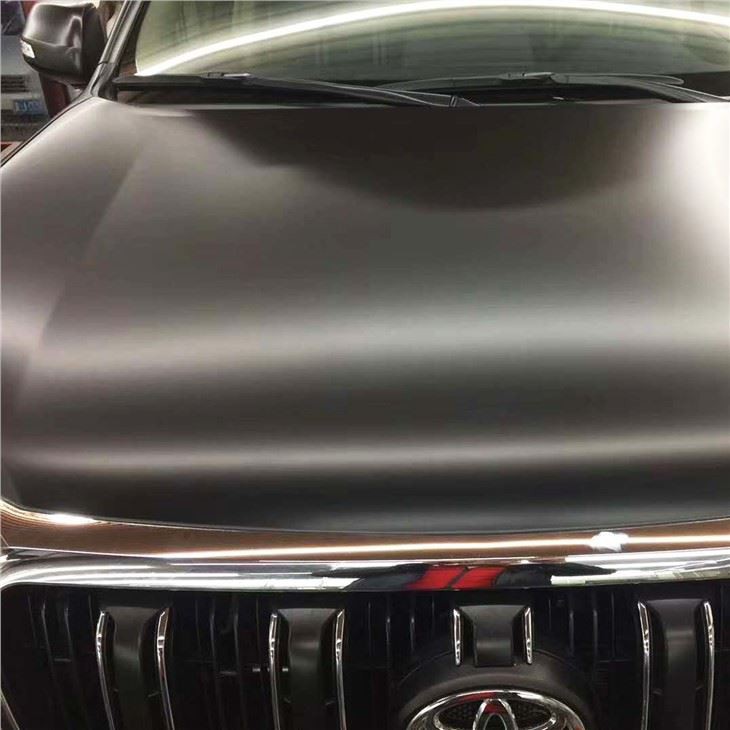

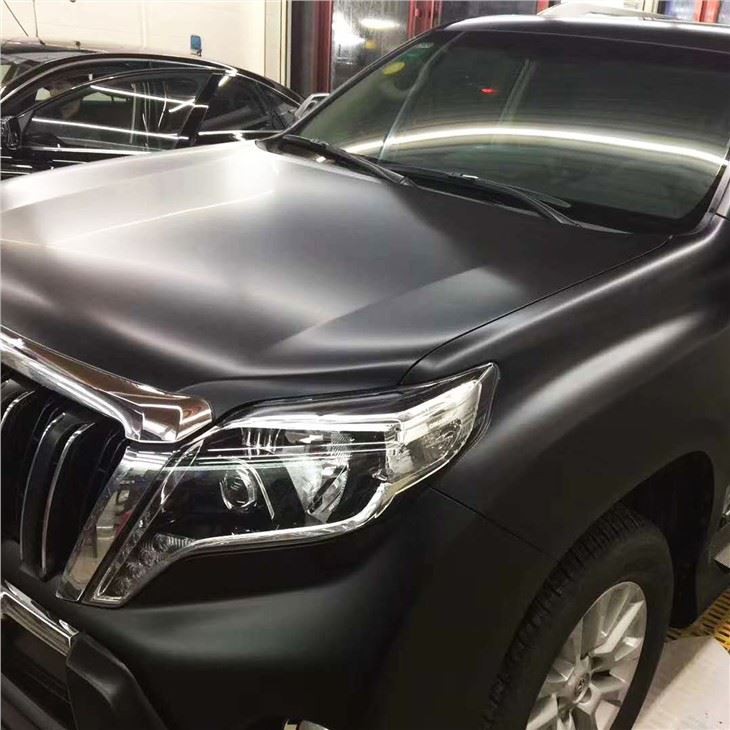

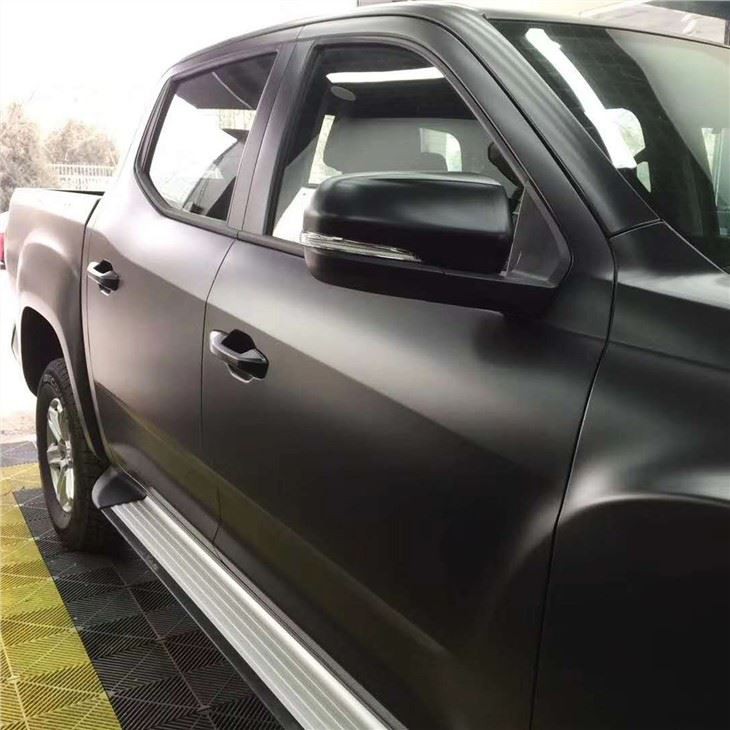

with a clear, stable pressure sensitive adhesive system, designed to provide the best overall properties to protect the paint or other smooth surface from stone, stain, abrasion or impact.Matte finish matching most factory matte paints that can transform glossy vehicle paint to matte finish.
For our PPF(TPH), we can also make the top coating with black or glossy type, it’s a high cost performance products and suitable for the economic market and customers.

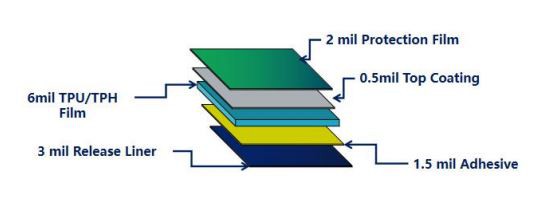

※ Products Structure
※ Products Size and Warranty
Type | Thickness | Size | Warranty |
Glossy Top Coat TPH PPF | 8 mil/6 mil | 1.52m*15m | 5 Years |
1.22m×30m | |||
0.92m×30m | |||
0.75m×30m | |||
0.61m×30m | |||
1.83m*15m |
※ Product Standard
Test Item | Standard | Test Method |
| TPH | ||
Modulus of Elasticity | ≤500Kgf/cm² | Tension tester |
Initial Stripping Force | ≥5N | Stick the steel plate for 20 minutes, with Tension tester |
Sustained Adhesion | 8N~20N | Stick the steel plate for 168 hours, with Tension tester |
Coating Elongation | ≥100% | Electronic tension tester |
Self-healing Ability | ≤5S | Brass brush, 750g, 10 times wipe, 60℃ condition |
Coating Adhesion | 5B | Grid testing |
Scrath Resistance | No scratch | Brass brush, 750g, 10 times wipe |
Resistance to Gasoline, Acid and Base | No abnormalities | Soak in alkaline water(PH=9) for 30min |
Weather resistance test | ΔE＜2 | QUV Tests： ≥1200H(TPH) |
Cold and Warm resistance | No Cracks No Bubbles | High and low temperature box: -40℃ and 80℃ alternating test for 168H |
※Products Performance
The car paint protective film, as its name implies, is a kind of film pasted on the car paint with a special substrate. At present, the high-end paint film protective film uses TPU as the preferred substrate, which has excellent ductility and flexibility, can effectively prevent the friction of scratches, small stones, sand and other substances, and can also adhere well to the car paint surface. , It can isolate the car paint from the air, and can effectively resist the pollution of the car paint caused by acid rain, bird droppings, and fallen leaves. Our company specializes in producing all kinds of paint protective films for cars.
