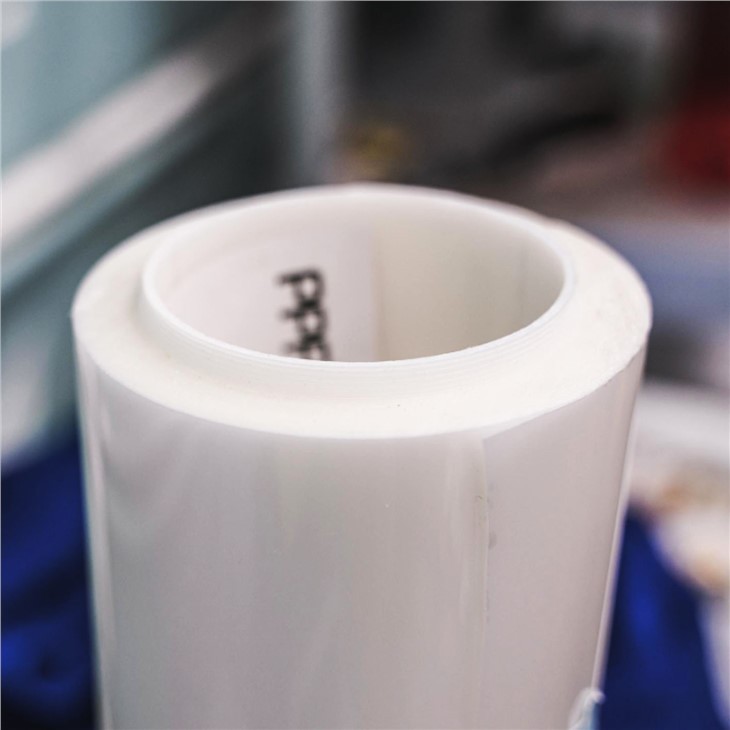

※ Clear PPF(TPU)
Dingxin Paint Protection Film (PPF) is a premium top-coated aliphatic
Polyurethane (TPU) with a clear, stable pressure sensitive adhesive system, designed to provide the best overall properties to protect the paint or other smooth surface from stone, stain, abrasion or impact.

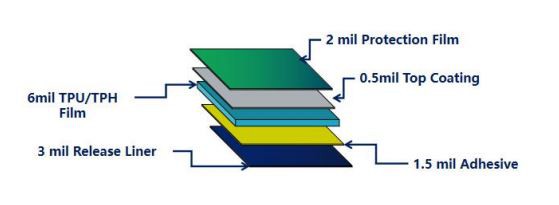

※ Products Structure

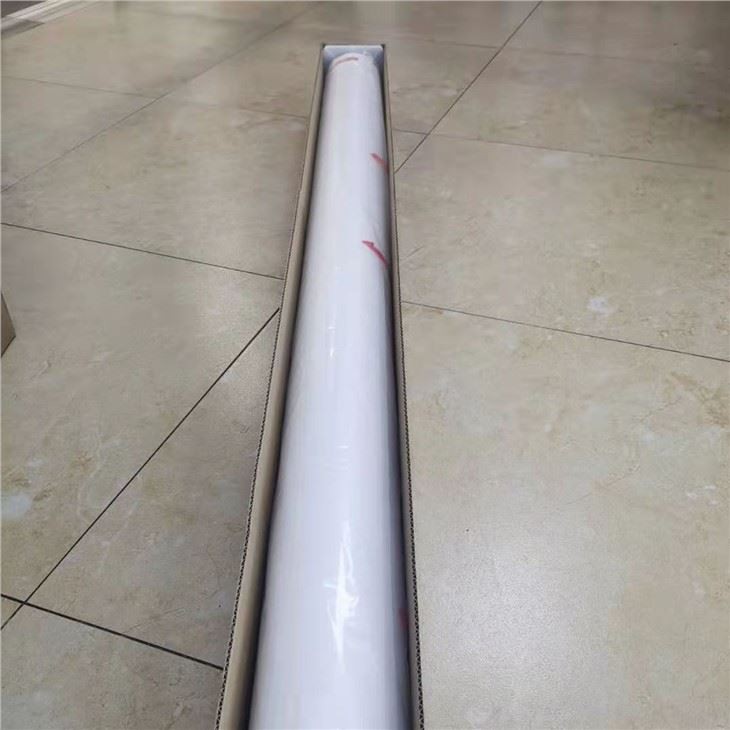

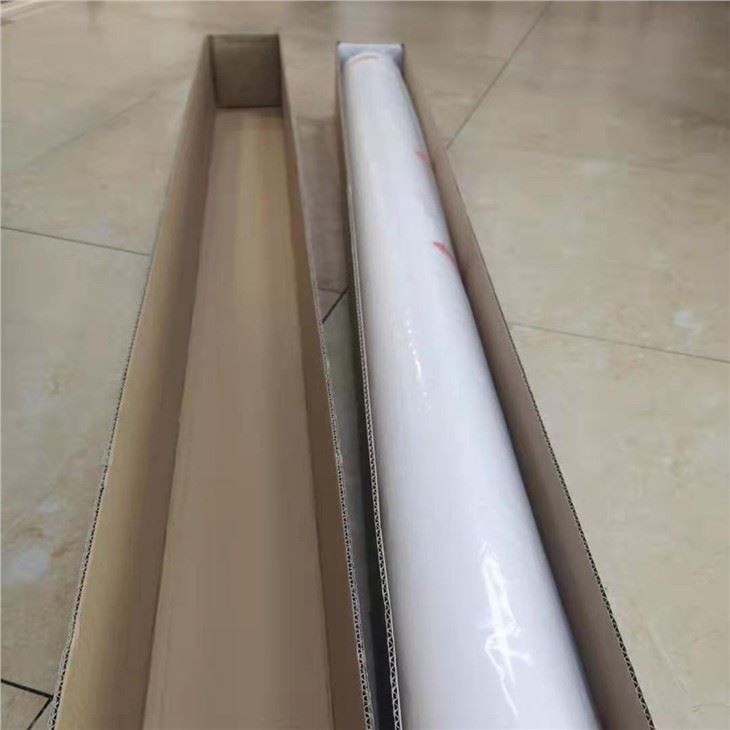

※ Products Size and Warranty
Type | Thickness | Size | Warranty |
Glossy Top Coat TPU PPF | 8 mil/6 mil | 1.52m*15m | 5 Years |
1.22m×30m | |||
0.92m×30m | |||
0.75m×30m | |||
0.61m×30m | |||
1.83m*15m |
※ Product Standard
Test Item | Standard | Test Method |
| TPU | ||
Modulus of Elasticity | ≤400Kgf/cm² | Tension tester |
Initial Stripping Force | ≥14N | Stick the steel plate for 20 minutes, with Tension tester |
Sustained Adhesion | 20N~30N | Stick the steel plate for 168 hours, with Tension tester |

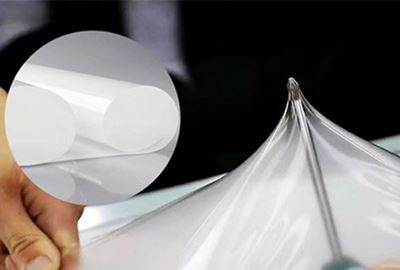

Coating Elongation | ≥100% | Electronic tension tester |
Self-healing Ability | ≤3S | Brass brush, 750g, 10 times wipe, 60℃ condition |
Coating Adhesion | 5B | Grid testing |
Scrath Resistance | No scratch | Brass brush, 750g, 10 times wipe |
Resistance to Gasoline, Acid and Base | No abnormalities |
Soak in alkaline water(PH=9) for 30min |
Weather resistance test | ΔE＜2 | QUV Tests：≥ 3000H(TPU) |
Cold and Warm resistance | No Cracks No Bubbles | High and low temperature box:-40℃ and 80℃ alternating test for 168H |

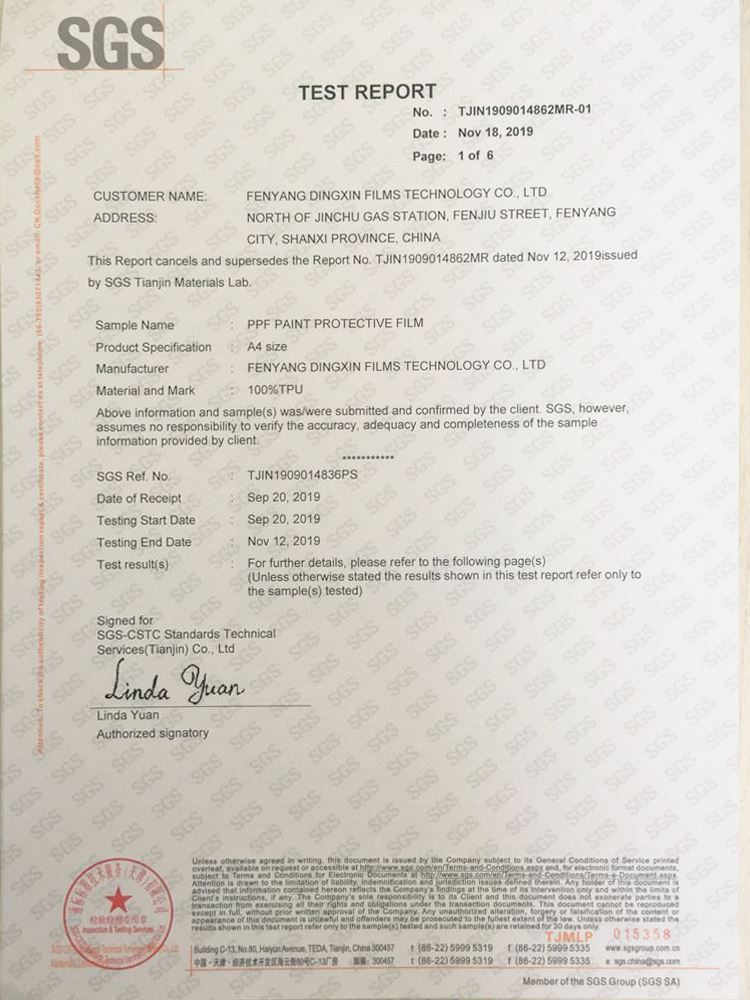

※SGS testing report
※Products Performance

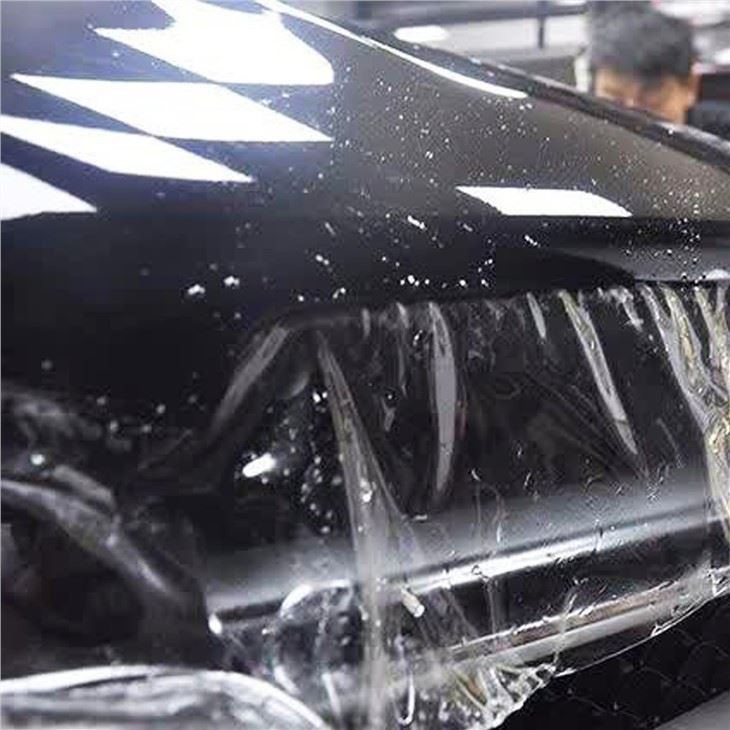

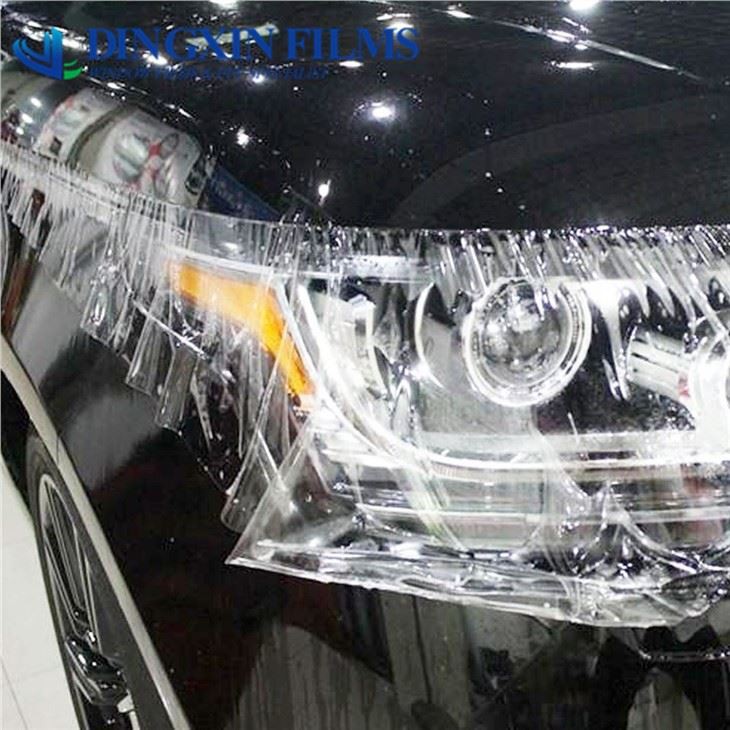

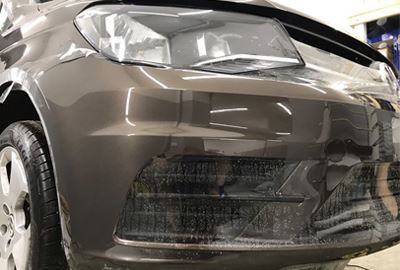

* PROTECT PAINT
Our sophisticated technology provides a dense top coat that heals faster than most PPF brand on the market and a beautiful crystal-clear finish that never yellows or cracks. These extremely durable films safeguard any vehicles paint from airborne impurities, common scratches, and road debris damage.
* SELF-HEALING COATING
The ability to heal is an advanced feature inside the films coating called (TPU), a flexible thermoplastic layer that can self-heal once damage occurs. Slight abrasions, scratches or outdoor hazards can be easily averted with these time-tested products.
* IMPROVED GLOSS
As light passes through the film it illuminates the paint color giving it a shiny glazed appearance. Silicone elements in the substrate also enhance the original paint producing a smooth high-gloss finish.
* STAIN RESISTANCE
The anti-stain protection comes from polyurethane dispersion (PUD), which is a self-cross-linking technology that enhances coating properties, such as hardness, water, and solvent resistance.
