Glossy PPF(TPH)
Dingxin Paint Protection Film (PPF) is a premium soft PVC (TPH)
with a clear, stable pressure sensitive adhesive system, designed to provide the best overall properties to protect the paint or other smooth surface from stone, stain, abrasion or impact.
For our PPF(TPH), we can also make the top coating with Black and matte type, with quite good ability and high cost performance, you are very welcome to inquiry.

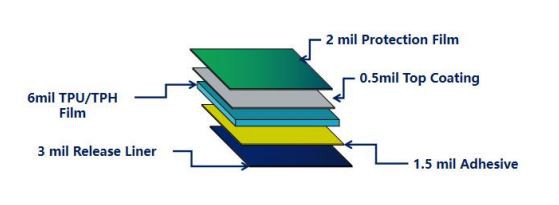

※ Products Structure
※ Products Size and Warranty
Type | Thickness | Size | Warranty |
Glossy Top Coat TPH PPF | 8 mil/6 mil | 1.52m*15m | 5 Years |
1.22m×30m | |||
0.92m×30m | |||
0.75m×30m | |||
0.61m×30m | |||
1.83m*15m |
※ Product Standard
Test Item | Standard | Test Method |
| TPH | ||
Modulus of Elasticity | ≤500Kgf/cm² | Tension tester |
Initial Stripping Force | ≥5N | Stick the steel plate for 20 minutes, with Tension tester |
Sustained Adhesion | 8N~20N | Stick the steel plate for 168 hours, with Tension tester |
Coating Elongation | ≥100% | Electronic tension tester |
Self-healing Ability | ≤5S | Brass brush, 750g, 10 times wipe, 60℃ condition |
Coating Adhesion | 5B | Grid testing |
Scrath Resistance | No scratch | Brass brush, 750g, 10 times wipe |
Resistance to Gasoline, Acid and Base | No abnormalities | Soak in alkaline water(PH=9) for 30min |
Weather resistance test | ΔE＜2 | QUV Tests：≥1200H(TPH) |
Cold and Warm resistance | No Cracks No Bubbles | High and low temperature box: -40℃ and 80℃ alternating test for 168H |

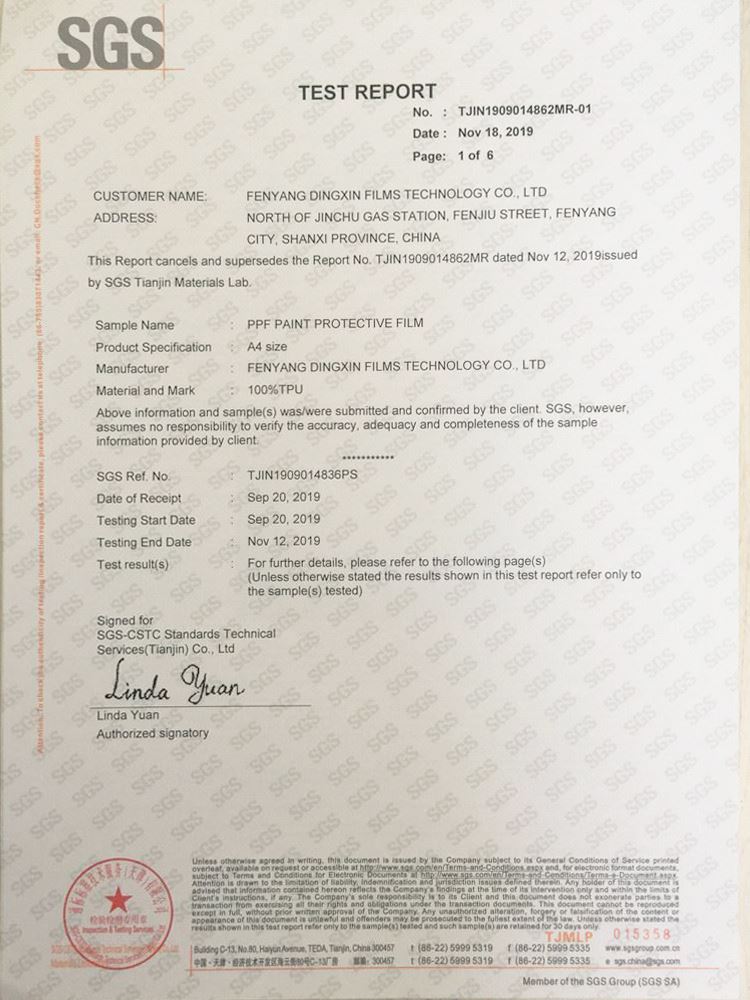

※SGS testing report

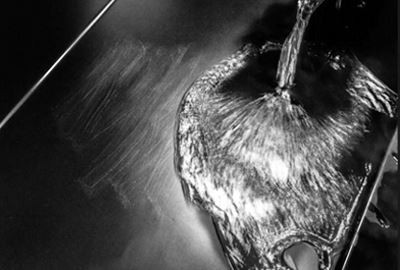

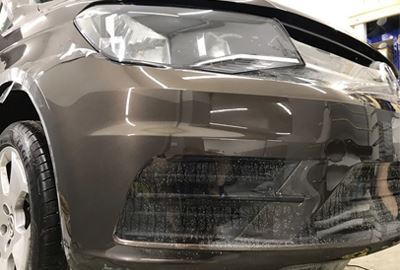

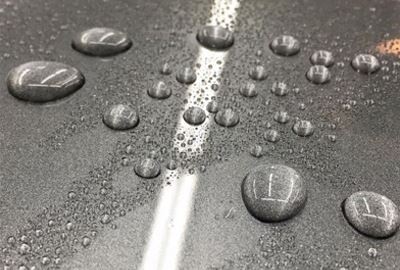

※Products Performance

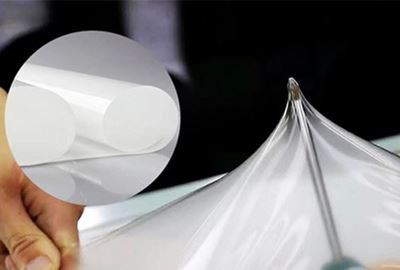

Paint Protection films are self-healing or heat curable because of a flexible component in the film, which is also known as thermoplastic polyurethane (TPU). This class of films has many properties including; elasticity, transparency, stain and abrasion resistance. A combination of hard and soft co-polymers reacts to rebind and retain their shape causing these PPF films to re-seal or heal themselves.
